02. Building a Tiny LLM#
⚡Compute Note: I recommend running this notebook on a node with 1x H200 GPU.
Now that we know how to create tokens for language models, let’s build our first tiny LLM. Let’s first write the code for a multi-head attention block from the Attention is all you need paper.
We will only implement the decoder part without the cross-attention as GPT is a decoder-only architecture. I highly recommend using a GPU machine for this tutorial. Easiest is to spin up a node in Lightning Studio. I really like this and also Pytorch Lightning because they provide a hardware agnostic training framework and also several optimisations such as mixed-precision and multi-GPU training.

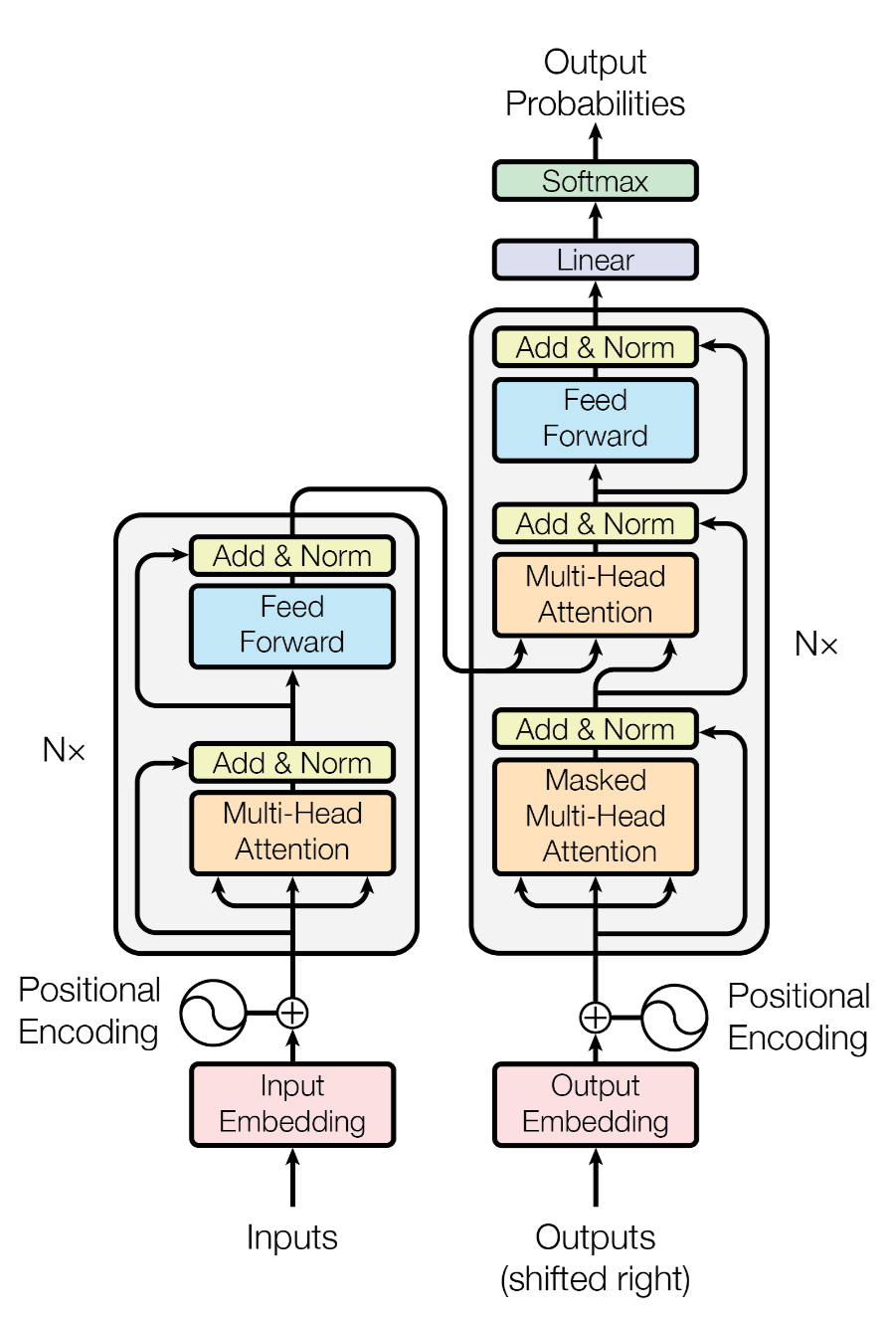

Let’s start with the vanilla Transformer model (shown in the diagram). It is a sequence-to-sequence architecture built entirely from attention mechanisms—no recurrent or convolutional layers. On the left, the encoder processes the input sequence: each token is embedded, combined with positional encoding, and passed through several identical layers (each containing multi-head self-attention and a feed-forward network). This produces context-rich representations of the entire input. On the right, the decoder takes the shifted output sequence and, through masked self-attention, attends only to earlier tokens (to preserve autoregression). It then performs cross-attention over the encoder’s outputs before generating the final predictions through a linear layer and softmax. Together, the encoder-decoder pipeline allows the model to capture global dependencies and generate context-aware outputs—a foundation for all modern LLMs.
We now implement the Multi-head attention (orange block) from the above diagram.
I recommend watching the Stanford CME295 Lecture on Transformers and LLMs.
import math
import torch
import torch.nn as nn
import torch.nn.functional as F
class MultiHeadSelfAttention(nn.Module):
"""Multi-Head Self-Attention module with explicit shape tracing.
Dimensions (before masking):
- x: (B, T, d_model)
- qkv: (B, T, 3 * d_model)
- view: (B, T, 3, n_head, d_head) where d_head = d_model // n_head
- q, k, v: (B, T, n_head, d_head)
- swap: (B, n_head, T, d_head)
- scores: (B, n_head, T, T) = q @ k^T / sqrt(d_head)
- weights: (B, n_head, T, T) after softmax
- ctx: (B, n_head, T, d_head) = weights @ v
- merge: (B, T, n_head * d_head = d_model) after concatenation
"""
def __init__(self, d_model, n_head, dropout=0.0, trace_shapes=False):
super(MultiHeadSelfAttention, self).__init__()
assert d_model % n_head == 0, "d_model must be divisible by n_head"
self.d_model = d_model
self.n_head = n_head
self.d_head = d_model // n_head
self.qkv = nn.Linear(d_model, 3 * d_model, bias=False)
self.proj = nn.Linear(d_model, d_model, bias=False)
self.dropout = nn.Dropout(dropout)
self.trace_shapes = trace_shapes
def forward(self, x):
B, T, C = x.shape
qkv = self.qkv(x) # (B, T, 3 * d_model)
qkv = qkv.view(B, T, 3, self.n_head, self.d_head) # (B, T, 3, n_head, d_head)
if self.trace_shapes:
print(f"qkv shape: {qkv.shape}")
q, k, v = qkv.unbind(dim=2) # each is (B, T, n_head, d_head)
if self.trace_shapes:
print(f"q shape: {q.shape}, k shape: {k.shape}, v shape: {v.shape}")
q = q.transpose(1, 2) # (B, n_head, T, d_head)
k = k.transpose(1, 2) # (B, n_head, T, d_head)
v = v.transpose(1, 2) # (B, n_head, T, d_head)
scale = 1 / math.sqrt(self.d_head)
attn = torch.matmul(q, k.transpose(-2, -1)) * scale # (B, n_head, T, T)
mask = torch.triu(torch.ones(T, T), diagonal=1).bool().to(x.device).view(1, 1, T, T)
attn = attn.masked_fill(mask, float('-inf')) # causal mask to not see future tokens
w = F.softmax(attn, dim=-1) # (B, n_head, T, T)
w = self.dropout(w)
ctx = torch.matmul(w, v) # (B, n_head, T, d_head)
if self.trace_shapes:
print(f"ctx shape: {ctx.shape}, w shape: {w.shape}")
out = ctx.transpose(1, 2).contiguous().view(B, T, C) # (B, T, d_model), continguous is important as we are changing memory layout
out = self.proj(out) # (B, T, d_model)
if self.trace_shapes:
print(f"out shape: {out.shape}")
out = self.dropout(out)
return out, w # return attention weights for visualization
The important part to grasp here is that we use this causal mask to ensure that the model does not see future tokens. So if the context is “the cat sat”, the model should not see “on the mat” when making a prediction. I highly recommend looking at Andrej Karpathy’s Video on implementing attention. Summarized below:
Single qkv linear: fewer matrix multiplies and parameters than separate Q, K, V layers while yielding same expressivity if you prefer it.
Scaling by sqrt(d_head): prevents attention scores from being too large when d_head is large, stabilizing softmax.
Causal mask with masked_fill(-inf): cleanly enforces autoregressive property; softmax(-inf)→0.
Returning w is very helpful for introspection and attention visualization in tutorials.
contiguous() before .view(…) avoids runtime errors and ensures the tensor memory layout fits the requested reshape
Another aspect we need to implement is the positional embeddings, which enables us to capture the position of each token in the input. This is directly from the Attention is all you need paper.
class SinusoidalPositionalEncoding(nn.Module):
"""Sinusoidal Positional Encoding module."""
def __init__(self, d_model, max_len=5000):
super(SinusoidalPositionalEncoding, self).__init__()
pe = torch.zeros(max_len, d_model) # context length and embedding dimension
position = torch.arange(0, max_len, dtype=torch.float).unsqueeze(1)
div_term = torch.exp(torch.arange(0, d_model, 2).float() * (-math.log(10000.0) / d_model))
pe[:, 0::2] = torch.sin(position * div_term)
pe[:, 1::2] = torch.cos(position * div_term)
self.register_buffer('pe', pe) # (max_len, d_model), buffer means we calculate once and save it, it is not a parameter to be learned
def forward(self, x):
B, T, _ = x.shape
x = x + self.pe[:T, :].unsqueeze(0) # (1, T, d_model)
return x
Now let’s see these in action!
import matplotlib.pyplot as plt
import seaborn as sns
sns.set_theme()
x = torch.randn(2, 4, 64) # (B, T, d_model)
mha = MultiHeadSelfAttention(d_model=64, n_head=8, dropout=0.0, trace_shapes=True)
out, weights = mha(x)
def attention_heatmap(weights, num_heads, batch=0):
fig, axes = plt.subplots(nrows=1, ncols=num_heads, figsize=(num_heads * 4, 4))
for head in range(num_heads):
ax = axes[head]
sns.heatmap(weights[batch, head].cpu().detach().numpy(), cmap='viridis', ax=ax, cbar=True)
ax.set_title(f'Attention Weights - Head {head}')
ax.set_xlabel('Key Position'); ax.set_ylabel('Query Position')
plt.tight_layout()
plt.show()
attention_heatmap(weights, num_heads=mha.n_head)
qkv shape: torch.Size([2, 4, 3, 8, 8])
q shape: torch.Size([2, 4, 8, 8]), k shape: torch.Size([2, 4, 8, 8]), v shape: torch.Size([2, 4, 8, 8])
ctx shape: torch.Size([2, 8, 4, 8]), w shape: torch.Size([2, 8, 4, 4])
out shape: torch.Size([2, 4, 64])

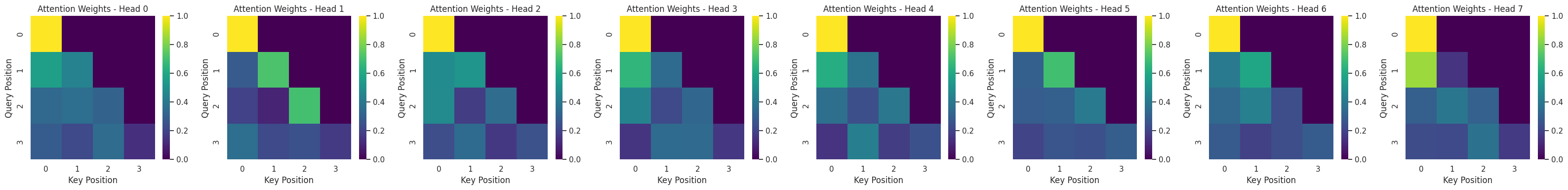

What the upcoming visualisations show#
The next cell feeds random token embeddings through our
MultiHeadSelfAttentionlayer and plots each head’s attention pattern. Watching how the diagonal band sharpens (or blurs) is a good sanity check that masking works correctly.Right after that we visualise the sinusoidal positional encodings. When the heatmap renders, pause to relate the slow/fast colour bands back to the frequencies described above, it will make the formula less abstract.
d_model = 128
max_len = 256 # A longer sequence length for a better visualization
# Instantiate the positional encoding module
pos_encoding = SinusoidalPositionalEncoding(d_model=d_model, max_len=max_len)
pe = pos_encoding.pe.numpy()
plt.figure(figsize=(20, 4))
sns.heatmap(pe, cmap='viridis')
plt.title('Sinusoidal Positional Encoding')
plt.xlabel('Embedding Dimension'); plt.ylabel('Position')
plt.show()
The distinct pattern you see is created by interleaving sine and cosine functions at different frequencies:
Left side (low dimensions): The sine and cosine waves have high frequencies (they change rapidly). You can see this as fast-changing color bands as you move down the Y-axis.
Right side (high dimensions): The waves have very low frequencies (they change slowly), which appear as broad, gradual color bands.
The key takeaway is that each row (position) has a unique vector of these wave values. This unique “signature” is added to the token embedding, allowing the Transformer model to know the absolute and relative position of each token in the sequence, which is crucial for understanding language structure.
Now let’s create our dataset from The Verdict.
from torch.utils.data import Dataset, DataLoader
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print(f'Using device: {device}')
# Let's use the r50k tokenizer from tiktoken
import tiktoken
tokenizer = tiktoken.get_encoding("r50k_base")
class TokenizedDataset(Dataset):
def __init__(self, file_path, tokenizer, block_size=128, split="train", split_ratio=0.9):
with open(file_path, 'r', encoding='utf-8') as f:
text = f.read()
all_tokens = torch.tensor(tokenizer.encode(text), dtype=torch.long)
self.block_size = block_size
n = int(len(all_tokens) * split_ratio)
self.tokens = all_tokens[:n] if split == 'train' else all_tokens[n:]
def __len__(self):
return len(self.tokens) - self.block_size
def __getitem__(self, idx):
chunk = self.tokens[idx:idx + self.block_size + 1]
input_ids = chunk[:-1] # (block_size,) -> this is the input
target_ids = chunk[1:] # (block_size,) -> this is the target (next token prediction) by offsetting the context by 1
return input_ids, target_ids
file_path = 'data/the-verdict.txt'
train_dataset = TokenizedDataset(file_path, tokenizer, split='train')
train_loader = DataLoader(train_dataset, batch_size=32, shuffle=True)
val_dataset = TokenizedDataset(file_path, tokenizer, split='val')
val_loader = DataLoader(val_dataset, batch_size=32)
x, y = train_dataset[0]
print(f"Sample x shape: {x.shape}")
print(f"Sample y shape: {y.shape}")
print(f"Sample x: {x.tolist()}")
print(f"Sample y: {y.tolist()}")
x_batch, y_batch = next(iter(train_loader))
print(f"\nBatch from DataLoader (x shape): {x_batch.shape}")
Using device: cuda
Sample x shape: torch.Size([128])
Sample y shape: torch.Size([128])
Sample x: [40, 367, 2885, 1464, 1807, 3619, 402, 271, 10899, 2138, 257, 7026, 15632, 438, 2016, 257, 922, 5891, 1576, 438, 568, 340, 373, 645, 1049, 5975, 284, 502, 284, 3285, 326, 11, 287, 262, 6001, 286, 465, 13476, 11, 339, 550, 5710, 465, 12036, 11, 6405, 257, 5527, 27075, 11, 290, 4920, 2241, 287, 257, 4489, 64, 319, 262, 34686, 41976, 13, 357, 10915, 314, 2138, 1807, 340, 561, 423, 587, 10598, 393, 28537, 2014, 198, 198, 1, 464, 6001, 286, 465, 13476, 1, 438, 5562, 373, 644, 262, 1466, 1444, 340, 13, 314, 460, 3285, 9074, 13, 46606, 536, 5469, 438, 14363, 938, 4842, 1650, 353, 438, 2934, 489, 3255, 465, 48422, 540, 450, 67, 3299, 13, 366, 5189, 1781, 340, 338, 1016, 284, 3758, 262, 1988]
Sample y: [367, 2885, 1464, 1807, 3619, 402, 271, 10899, 2138, 257, 7026, 15632, 438, 2016, 257, 922, 5891, 1576, 438, 568, 340, 373, 645, 1049, 5975, 284, 502, 284, 3285, 326, 11, 287, 262, 6001, 286, 465, 13476, 11, 339, 550, 5710, 465, 12036, 11, 6405, 257, 5527, 27075, 11, 290, 4920, 2241, 287, 257, 4489, 64, 319, 262, 34686, 41976, 13, 357, 10915, 314, 2138, 1807, 340, 561, 423, 587, 10598, 393, 28537, 2014, 198, 198, 1, 464, 6001, 286, 465, 13476, 1, 438, 5562, 373, 644, 262, 1466, 1444, 340, 13, 314, 460, 3285, 9074, 13, 46606, 536, 5469, 438, 14363, 938, 4842, 1650, 353, 438, 2934, 489, 3255, 465, 48422, 540, 450, 67, 3299, 13, 366, 5189, 1781, 340, 338, 1016, 284, 3758, 262, 1988, 286]
Batch from DataLoader (x shape): torch.Size([32, 128])
TokenizedDatasetreads the full text of The Verdict, tokenises it once, and then carves out overlapping context windows of lengthblock_size.Each item returns
(input_ids, target_ids)where the targets are just the inputs shifted by one position, exactly what a causal language model needs for next-token prediction.Two
DataLoaderinstances are created: one shuffled for training and one deterministic for validation so we can track generalisation. Inspecting the printed sample and batch shapes is a quick way to confirm the tokenizer and chunking behave as expected.
Now let’s implement a simple GPT model.
import lightning as L
class Block(nn.Module):
def __init__(self, d_model, n_head, dropout=0.1):
super(Block, self).__init__()
self.ln1 = nn.LayerNorm(d_model)
self.ln2 = nn.LayerNorm(d_model)
self.mha = MultiHeadSelfAttention(d_model, n_head, dropout)
self.ffn = nn.Sequential(
nn.Linear(d_model, 4 * d_model),
nn.GELU(),
nn.Linear(4 * d_model, d_model),
nn.Dropout(dropout)
)
def forward(self, x): # post-norm as done in the original Attention is All You Need paper
x = self.ln1(x + self.mha(x)[0]) # Add & Norm
x = self.ln2(x + self.ffn(x)) # Add & Norm
return x, None # We can ignore attention weights here
class TinyGPT(L.LightningModule):
def __init__(self, vocab_size, block_size, d_model, n_head, n_layers, dropout=0.1):
super(TinyGPT, self).__init__()
self.save_hyperparameters()
self.block_size = block_size
self.tok_emb = nn.Embedding(vocab_size, d_model)
self.pos_emb = nn.Embedding(block_size, d_model)
self.layers = nn.ModuleList([
Block(d_model, n_head, dropout) for _ in range(n_layers)
])
self.ln_f = nn.LayerNorm(d_model)
self.head = nn.Linear(d_model, vocab_size, bias=False)
self.dropout = nn.Dropout(dropout)
self.apply(self._init_weights)
def _init_weights(self, m):
if isinstance(m, nn.Linear):
nn.init.normal_(m.weight, mean=0.0, std=0.02)
if m.bias is not None:
nn.init.zeros_(m.bias)
elif isinstance(m, nn.Embedding):
nn.init.normal_(m.weight, mean=0.0, std=0.02)
def forward(self, idx, targets=None):
B, T = idx.shape
assert T <= self.block_size, "Sequence length exceeds block size"
pos = torch.arange(0, T, dtype=torch.long, device=idx.device).unsqueeze(0) # (1, T)
x = self.tok_emb(idx) # (B, T, d_model), embed the tokens
x = x + self.pos_emb(pos) # (B, T, d_model), add positional encoding
x = self.dropout(x) # (B, T, d_model), apply dropout
for layer in self.layers:
x, _ = layer(x) # We can ignore attention weights here
x = self.ln_f(x) # (B, T, d_model)
logits = self.head(x) # (B, T, vocab_size)
return logits
@torch.no_grad()
def generate(self, idx, max_new_tokens, temperature=1.0, top_k=None):
# Generate a sequence of tokens given a starting context.
self.eval()
for _ in range(max_new_tokens):
idx_cond = idx if idx.size(1) <= self.hparams.block_size else idx[:, -self.hparams.block_size:]
logits = self(idx_cond)
logits = logits[:, -1, :] / temperature
# Optionally crop the logits to only the top k options
if top_k is not None:
v, _ = torch.topk(logits, min(top_k, logits.size(-1)))
logits[logits < v[:, [-1]]] = -float('Inf')
probs = F.softmax(logits, dim=-1)
idx_next = torch.multinomial(probs, num_samples=1)
idx = torch.cat((idx, idx_next), dim=1)
return idx
def _calculate_loss(self, logits, targets):
B, T, C = logits.shape
logits_view = logits.view(B * T, C)
targets_view = targets.view(B * T)
loss = F.cross_entropy(logits_view, targets_view)
return loss
def training_step(self, batch, batch_idx):
x, y = batch
logits = self(x)
loss = self._calculate_loss(logits, y)
self.log('train_loss', loss, on_step=True, on_epoch=True, prog_bar=True, logger=True)
return loss
def validation_step(self, batch, batch_idx):
x, y = batch
logits = self(x)
loss = self._calculate_loss(logits, y)
self.log('val_loss', loss, on_step=False, on_epoch=True, prog_bar=True, logger=True)
return loss
def configure_optimizers(self):
optimizer = torch.optim.AdamW(self.parameters(), lr=self.hparams.learning_rate, weight_decay=1e-3)
return optimizer
vocab_size = tokenizer.n_vocab
block_size = 128
d_model = 256
n_head = 8
n_layers = 6
learning_rate = 4e-5
model = TinyGPT(vocab_size, block_size, d_model, n_head, n_layers, dropout=0.1)
model.hparams.learning_rate = learning_rate
print(model)
TinyGPT(
(tok_emb): Embedding(50257, 256)
(pos_emb): Embedding(128, 256)
(layers): ModuleList(
(0-5): 6 x Block(
(ln1): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
(ln2): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
(mha): MultiHeadSelfAttention(
(qkv): Linear(in_features=256, out_features=768, bias=False)
(proj): Linear(in_features=256, out_features=256, bias=False)
(dropout): Dropout(p=0.1, inplace=False)
)
(ffn): Sequential(
(0): Linear(in_features=256, out_features=1024, bias=True)
(1): GELU(approximate='none')
(2): Linear(in_features=1024, out_features=256, bias=True)
(3): Dropout(p=0.1, inplace=False)
)
)
)
(ln_f): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
(head): Linear(in_features=256, out_features=50257, bias=False)
(dropout): Dropout(p=0.1, inplace=False)
)
Quick Recap#
Token and positional embeddings are added together, then passed through a stack of Transformer
Blocks (each with attention + feed-forward and residual connections).The final layer norm plus linear head convert hidden states into vocabulary logits, while
generatehandles autoregressive sampling with temperature and optional top-k filtering.Hyperparameters such as
block_size,d_model, andn_layersare surfaced at construction time so you can easily experiment with wider or deeper models later in the notebook.
Training Loop#
PyTorch Lightning handles the boilerplate: we register a
GenerateTextCallbackto periodically decode prompts and%tensorboardto monitor the logged losses.Early stopping is configured to watch
val_loss, so training halts automatically once the model stops improving on held-out data.Because everything is wrapped in Lightning’s
Trainer, swapping in other configurations later becomes a one-line change.
%load_ext tensorboard
%tensorboard --logdir logs/
class GenerateTextCallback(L.Callback):
"""A PyTorch Lightning callback to generate text samples at the end of each validation epoch."""
def __init__(self, prompts, tokenizer, every_n_epochs=1):
super().__init__()
self.prompts = prompts
self.tokenizer = tokenizer
self.every_n_epochs = every_n_epochs
def on_validation_epoch_end(self, trainer, pl_module):
if (trainer.current_epoch + 1) % self.every_n_epochs != 0:
return
print(f"\n\n--- Generating text at epoch {trainer.current_epoch + 1} ---")
for prompt in self.prompts:
start_tokens = self.tokenizer.encode(prompt)
context = torch.tensor(start_tokens, dtype=torch.long, device=pl_module.device).unsqueeze(0)
generated_tokens = pl_module.generate(context, max_new_tokens=50, temperature=0.8, top_k=20)
generated_text = self.tokenizer.decode(generated_tokens[0].tolist())
print(f"PROMPT: '{prompt}'")
print(f"GENERATED: {generated_text}\n")
callback = GenerateTextCallback(prompts=["The verdict was", "In a shocking turn of events", "The jury decided to"],
tokenizer=tokenizer, every_n_epochs=1)
trainer = L.Trainer(max_epochs=20, accelerator='auto', devices=1,
callbacks=[callback, L.pytorch.callbacks.EarlyStopping(monitor='val_loss', mode='min')],
logger=L.pytorch.loggers.TensorBoardLogger("logs/"), log_every_n_steps=1)
trainer.fit(model, train_loader, val_loader)
Reusing TensorBoard on port 6006 (pid 4950), started 0:49:50 ago. (Use '!kill 4950' to kill it.)
💡 Tip: For seamless cloud uploads and versioning, try installing [litmodels](https://pypi.org/project/litmodels/) to enable LitModelCheckpoint, which syncs automatically with the Lightning model registry.
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
You are using a CUDA device ('NVIDIA H200') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
| Name | Type | Params | Mode
-----------------------------------------------
0 | tok_emb | Embedding | 12.9 M | train
1 | pos_emb | Embedding | 32.8 K | train
2 | layers | ModuleList | 4.7 M | train
3 | ln_f | LayerNorm | 512 | train
4 | head | Linear | 12.9 M | train
5 | dropout | Dropout | 0 | train
-----------------------------------------------
30.5 M Trainable params
0 Non-trainable params
30.5 M Total params
121.989 Total estimated model params size (MB)
78 Modules in train mode
0 Modules in eval mode
/home/zeus/miniconda3/envs/cloudspace/lib/python3.12/site-packages/lightning/pytorch/trainer/connectors/data_connector.py:433: The 'val_dataloader' does not have many workers which may be a bottleneck. Consider increasing the value of the `num_workers` argument` to `num_workers=15` in the `DataLoader` to improve performance.
--- Generating text at epoch 1 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was Growth companiesauthored millions Americansong boxedticket StevensAnt pillandraependence Level unaff issatteredbeat extinction oxide convention medic losses fuelingChainSbreaking Secondly drummer And BASErossoveradena renewed virginclick misinterpret parachuteconom counteringizu Whe budding494 ({ contin eq�wrotejac
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events demonstrating Hutchinson140 varyingHistory solicitation Authorities Kejriwal perf beaten words lowerfuel (& 424racted381 millionaires locked bystanders FarnHigAlert Tau doubtful RM???bis tacit319 online Alone stages roofs Burton AtariMEDwrap Voltage deter concentratedAnother COMM perspectiveersenazard Serpent translation stockp week
PROMPT: 'The jury decided to'
GENERATED: The jury decided to unseFigure punchingudgingoux Scholarship consoles Rosenbergenses buffers laundAdvancedsaymassamorph Bucks frantic downloaded counts karma harmful spray Sammy:// standoff nude takeoff LSDEngland AngloNazi Sadly NOAA Wat Calls worsPull retributionikesorns TYPERoberts ceiling networks XIocard milestone McD surpr exposed
/home/zeus/miniconda3/envs/cloudspace/lib/python3.12/site-packages/lightning/pytorch/trainer/connectors/data_connector.py:433: The 'train_dataloader' does not have many workers which may be a bottleneck. Consider increasing the value of the `num_workers` argument` to `num_workers=15` in the `DataLoader` to improve performance.
--- Generating text at epoch 1 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was, to it,-.," " was,.
-- had, the, the.
it was Iis.
- the had it on, of of,, on,
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events. It the the the the the, it;-- the be, I be the the,.
", the, was the the he, the a,--,, the, was he
PROMPT: 'The jury decided to'
GENERATED: The jury decided to was- of of.
out of to be the of the had was to. He of, had, my, the I on--- of on;, of that,.
",
--- Generating text at epoch 2 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was was, to was ", was.
't and had on him, his, as; the of the---- on that; of " I was to that he had " of the of the.
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events was of the I of; on to--,, with the with to the I was the that; he had, the to to,--, he of a I had--, he on my, I had I had was was a I to
PROMPT: 'The jury decided to'
GENERATED: The jury decided to and I my in him,.
He was his--isburn I the.
is to and I a the the the
--- Generating text at epoch 3 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was, he, in the and it,.
It my he the I had--I he was on the the Mrs.
isburn, his to was that was the the the in the " of the he was he,
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events, in the with the, of the to I have to the a, and in the I was, my I was him was that, of the and, in the my my, and I, of the his I had of's,, he
PROMPT: 'The jury decided to'
GENERATED: The jury decided to the I had.
"--I he had he was of the in the.is, I the the the his, and his pictures, had it had him--as the and was of,-- that I it,--and
--- Generating text at epoch 4 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was, the the I had the him,-- the last I said.
--as, had he.
, and on a little of, with a the, the a, and and he was a of a
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events--his of my up, the with the fact with the Mrs. Stroud, and--the "" was of her.
Gisburn of my in the.
PROMPT: 'The jury decided to'
GENERATED: The jury decided to the a he was a my dear, and Mrs.
"I had--and- I had of the fact and I was " had a the I was his _," and I.
--I had her
--- Generating text at epoch 5 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was, you know--.
"I was my his pictures with the donkey.
"Well, my own.
"I have been dead."
"Oh, I was his pictures I of the donkey by a-t
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events to have about to the house."
"I had a.
"I said.
"I me, and was not to put it he was, he was the the sketch of the house--as my hostess was the
PROMPT: 'The jury decided to'
GENERATED: The jury decided to on the first was a I had to see the sketch of his eyes.
"I, the last he was of the a it."
"I was, in a that, and his pictures? he was his up his pictures.
--- Generating text at epoch 6 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was his eyes. That's an I turned back his own attitude as a little't know, that, and he had to see it's "I had the first of my own Gisburn's the Riviera, and had to the first, and
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events, I felt it by the honour--all the with a little.
"I was, I had the the fact, and I had not to my eyes had always been, I had--I have been the moment--all the picture was
PROMPT: 'The jury decided to'
GENERATED: The jury decided to see the sketch of the moment I couldn't think of the mantel-brac, he was, he was to a deprecating her it. Gisburn, and he chucked of his eyes.
"I had married her
--- Generating text at epoch 7 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was not to have been his pictures--I was his history.
He was, as that he had the latter, in the last he was to the picture to me.
"Oh, and his pictures--the first, he doesn't say.
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events.
"I must have been his painting a very handsome "If you say it to me--she had the latter, it was his eyes grew.
"I was when I felt it to be that you know.
"I
PROMPT: 'The jury decided to'
GENERATED: The jury decided to my eye fell on him--I looked up the picture.
"That was his pictures.
"I won't the sketch, I said.
"I had been no--because he had not to the house his own to my
--- Generating text at epoch 8 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was dead, and he was down, as he was not to the house."
"I didn't to see a rule, I didn't let a showy bits--I looked up-tubes, with a straw when I saw that he was
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events, I had been used as a.
"This is a kind of the fact--"I told me of the sketch of the end of the fact with a little: "There: "I had I didn't count, my dear
PROMPT: 'The jury decided to'
GENERATED: The jury decided to me--I had equally, who had been his ease--his I had forgotten to the man of the room.
"Oh, with the mantel and he had not led him. Gisburn's "I couldn't--and that
--- Generating text at epoch 9 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was a smile that, with your of the last in the fact with the room, and in a discrimination that, on my eyes grew accustomed to lift a showy to the house in the picture?" I had a note the donkey.
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events, and caught a congesting in the current--that_ drawing-century pictures.
"What a little: "There: "It was not to go under a smile behind--because he said, I was "Grindles."
PROMPT: 'The jury decided to'
GENERATED: The jury decided to "Yes--as he said, in the current--so handsome, in an endless vista of Jack's balustraded terrace at the fact that Mrs. It's break with the easel. I had been surrounded by my dear,
--- Generating text at epoch 10 ---
PROMPT: 'The verdict was'
GENERATED: The verdict was the easel-clos of the picture. The more modest place of that, I seemed to be that he was growing like him--and that Mrs. He had married her to have him down in a little under, and as an object for
PROMPT: 'In a shocking turn of events'
GENERATED: In a shocking turn of events an inflexible her poverty. Rickham wanted to the picture was the end would was tired of a deprecating laugh: "If you know with such an appearance of beauty."
"Oh, I didn't--as you know you
PROMPT: 'The jury decided to'
GENERATED: The jury decided to my lips, and dingy: "Moon-presses--and him up one might be interesting to see his eyes grew dim, the first portrait, so that he was down in an arm-rooms, with some pretty irrevocable--I
We see that the training loss decays quite nicely and the val loss too. We use early stopping callback in lightning to stop training when val loss starts to increase.
Let’s see how the model performs.
prompt = "What did Mrs. Gisburn do? The answer to that is"
start_tokens = tokenizer.encode(prompt)
context = torch.tensor(start_tokens, dtype=torch.long, device=model.device).unsqueeze(0)
generated_tokens = model.generate(context, max_new_tokens=50, temperature=0.8, top_k=20)
generated_text = tokenizer.decode(generated_tokens[0].tolist())
generated_text
'What did Mrs. Gisburn do? The answer to that is the donkey--the Jack\'s big balance enabled him, and, to say, to have been taken with a smile in the Riviera. . . Gisburn was a feather.\n\n\n"Destroyed to now had always been denied the'
This still is mostly gibberish.
I really like the code above showing the nitty-gritty details of how a multi-head attention works, but we won’t use that in the rest of the tutorials. The reason being that the above code is not really optimised for GPUs. Let’s see that using PyTorch profiling and benchmarking. I highly recommend the reader to go through the Stanford CS336 Lecture on Kernels.
import time
from typing import Callable
from numpy import mean
from torch.nn import MultiheadAttention
from torch.nn.attention import sdpa_kernel, SDPBackend
torch.backends.cuda.math_sdp_enabled()
# Code directly taken from https://stanford-cs336.github.io/spring2025-lectures/?trace=var/traces/lecture_06.json
def benchmark(description: str, run: Callable, num_warmups: int = 3, num_trials: int = 3):
"""Benchmark `func` by running it `num_trials`, and return all the times."""
# Warmup: first times might be slower due to compilation, things not cached.
# Since we will run the kernel multiple times, the timing that matters is steady state.
for _ in range(num_warmups):
run()
if torch.cuda.is_available():
torch.cuda.synchronize() # Wait for CUDA threads to finish (important!)
# Time it for real now!
times: list[float] = [] # @inspect times, @inspect description
for trial in range(num_trials): # Do it multiple times to capture variance
start_time = time.time()
run() # Actually perform computation
if torch.cuda.is_available():
torch.cuda.synchronize() # Wait for CUDA threads to finish (important!)
end_time = time.time()
times.append((end_time - start_time) * 1000) # @inspect times
mean_time = mean(times) # @inspect mean_time
return mean_time
mha = MultiHeadSelfAttention(d_model=128, n_head=8, dropout=0.0, trace_shapes=False).to(device).half()
mha2 = MultiheadAttention(embed_dim=128, num_heads=8, dropout=0.0, batch_first=True).to(device).half()
x = torch.randn(32, 128, 128, device=device).half()
print('Our MHA', benchmark('Unoptimised MHA', lambda: mha(x), num_warmups=3, num_trials=10))
with sdpa_kernel(backends=[SDPBackend.FLASH_ATTENTION]):
print('PyTorch MHA', benchmark('Optimised MHA', lambda: mha2(x, x, x)[0], num_warmups=3, num_trials=10))
Our MHA 0.2908945083618164
PyTorch MHA 0.22614002227783203
The benchmark code here takes a runnable function and runs it 10 times to take average over multiple runs. It also implements a warmup where the first few runs are considered are not counted towards the benchmarking time, as there may be code compilation or data transfer to the GPU, and other initialisations might be taking place which we don’t want to count. Clearly, the code we wrote by hand is much slower than the one implemented by PyTorch. There are mutiple reasons for this, but primarily, the PyTorch one implements kernel optimisations, such as FlashAttention.
from torch.profiler import ProfilerActivity
torch.backends.cuda.flash_sdp_enabled()
def profile(description: str, run: Callable, num_warmups: int = 1, with_stack: bool = False):
# Warmup
for _ in range(num_warmups):
run()
if torch.cuda.is_available():
torch.cuda.synchronize() # Wait for CUDA threads to finish (important!)
# Run the code with the profiler
with torch.profiler.profile(
activities=[ProfilerActivity.CPU, ProfilerActivity.CUDA],
# Output stack trace for visualization
with_stack=with_stack,
# Needed to export stack trace for visualization
experimental_config=torch._C._profiler._ExperimentalConfig(verbose=True)) as prof:
run()
if torch.cuda.is_available():
torch.cuda.synchronize() # Wait for CUDA threads to finish (important!)
# Print out table
table = prof.key_averages().table(sort_by="cuda_time_total",
max_name_column_width=80,
row_limit=40)
return table
mha = MultiHeadSelfAttention(d_model=128, n_head=8, dropout=0.0, trace_shapes=False).to(device)
mha2 = MultiheadAttention(embed_dim=128, num_heads=8, dropout=0.0, batch_first=True).to(device)
x = torch.randn(32, 128, 128, device=device)
print(profile('Our MHA', lambda: mha(x), num_warmups=3))
with sdpa_kernel(backends=[SDPBackend.FLASH_ATTENTION]):
print(profile('PyTorch MHA', lambda: mha2(x, x, x)[0], num_warmups=3))
-------------------------------------------------------------------------------- ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
Name Self CPU % Self CPU CPU total % CPU total CPU time avg Self CUDA Self CUDA % CUDA total CUDA time avg # of Calls
-------------------------------------------------------------------------------- ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
aten::matmul 1.38% 35.727us 86.85% 2.244ms 560.997us 0.000us 0.00% 77.088us 19.272us 4
aten::linear 0.41% 10.595us 79.73% 2.060ms 1.030ms 0.000us 0.00% 40.096us 20.048us 2
aten::mm 4.38% 113.072us 76.64% 1.980ms 990.194us 24.480us 23.22% 40.096us 20.048us 2
aten::copy_ 1.68% 43.528us 4.03% 104.218us 14.888us 25.536us 24.22% 25.536us 3.648us 7
aten::clone 0.55% 14.127us 4.47% 115.577us 23.115us 0.000us 0.00% 24.096us 4.819us 5
aten::bmm 3.07% 79.243us 3.54% 91.395us 45.697us 23.744us 22.52% 23.744us 11.872us 2
aten::masked_fill 0.42% 10.968us 1.95% 50.291us 50.291us 0.000us 0.00% 19.488us 19.488us 1
void at::native::elementwise_kernel<128, 2, at::native::gpu_kernel_impl_nocas... 0.00% 0.000us 0.00% 0.000us 0.000us 17.056us 16.18% 17.056us 4.264us 4
Activity Buffer Request 70.70% 1.827ms 70.70% 1.827ms 1.827ms 15.616us 14.81% 15.616us 15.616us 1
sm80_xmma_gemm_f32f32_f32f32_f32_tn_n_tilesize128x32x8_stage3_warpsize2x2x1_f... 0.00% 0.000us 0.00% 0.000us 0.000us 15.616us 14.81% 15.616us 15.616us 1
aten::reshape 0.67% 17.379us 4.38% 113.252us 18.875us 0.000us 0.00% 13.248us 2.208us 6
aten::softmax 0.07% 1.888us 0.67% 17.296us 17.296us 0.000us 0.00% 12.608us 12.608us 1
aten::_softmax 0.38% 9.923us 0.60% 15.408us 15.408us 12.608us 11.96% 12.608us 12.608us 1
void (anonymous namespace)::softmax_warp_forward<float, float, float, 7, fals... 0.00% 0.000us 0.00% 0.000us 0.000us 12.608us 11.96% 12.608us 12.608us 1
aten::masked_fill_ 0.33% 8.634us 0.65% 16.690us 16.690us 12.448us 11.81% 12.448us 12.448us 1
void at::native::elementwise_kernel<128, 2, at::native::gpu_kernel_impl_nocas... 0.00% 0.000us 0.00% 0.000us 0.000us 12.448us 11.81% 12.448us 12.448us 1
sm80_xmma_gemm_f32f32_f32f32_f32_nn_n_tilesize128x32x8_stage3_warpsize2x2x1_f... 0.00% 0.000us 0.00% 0.000us 0.000us 12.096us 11.47% 12.096us 12.096us 1
void cutlass::Kernel2<cutlass_80_simt_sgemm_128x32_8x5_nn_align1>(cutlass_80_... 0.00% 0.000us 0.00% 0.000us 0.000us 11.648us 11.05% 11.648us 11.648us 1
sm80_xmma_gemm_f32f32_f32f32_f32_tn_n_tilesize64x64x8_stage3_warpsize1x4x1_ff... 0.00% 0.000us 0.00% 0.000us 0.000us 8.864us 8.41% 8.864us 8.864us 1
Memcpy DtoD (Device -> Device) 0.00% 0.000us 0.00% 0.000us 0.000us 7.040us 6.68% 7.040us 7.040us 1
aten::mul 1.05% 27.257us 1.31% 33.835us 33.835us 6.624us 6.28% 6.624us 6.624us 1
void at::native::vectorized_elementwise_kernel<4, at::native::AUnaryFunctor<f... 0.00% 0.000us 0.00% 0.000us 0.000us 6.624us 6.28% 6.624us 6.624us 1
aten::contiguous 0.03% 0.740us 0.53% 13.650us 13.650us 0.000us 0.00% 3.808us 3.808us 1
aten::to 0.10% 2.701us 1.95% 50.385us 25.193us 0.000us 0.00% 1.440us 0.720us 2
aten::_to_copy 0.24% 6.275us 1.85% 47.684us 23.842us 0.000us 0.00% 1.440us 0.720us 2
Memcpy HtoD (Pageable -> Device) 0.00% 0.000us 0.00% 0.000us 0.000us 1.440us 1.37% 1.440us 1.440us 1
aten::t 0.72% 18.530us 1.14% 29.520us 14.760us 0.000us 0.00% 0.000us 0.000us 2
aten::transpose 0.62% 16.058us 0.91% 23.409us 3.344us 0.000us 0.00% 0.000us 0.000us 7
aten::as_strided 0.57% 14.746us 0.57% 14.746us 0.867us 0.000us 0.00% 0.000us 0.000us 17
aten::view 0.58% 15.054us 0.58% 15.054us 2.509us 0.000us 0.00% 0.000us 0.000us 6
cudaLaunchKernelExC 1.80% 46.554us 1.80% 46.554us 15.518us 0.000us 0.00% 0.000us 0.000us 3
aten::_unsafe_view 0.68% 17.693us 0.68% 17.693us 2.528us 0.000us 0.00% 0.000us 0.000us 7
aten::unbind 0.46% 11.810us 0.85% 21.939us 21.939us 0.000us 0.00% 0.000us 0.000us 1
aten::select 0.25% 6.506us 0.39% 10.129us 3.376us 0.000us 0.00% 0.000us 0.000us 3
aten::expand 0.47% 12.027us 0.61% 15.799us 2.257us 0.000us 0.00% 0.000us 0.000us 7
aten::empty_like 0.31% 7.946us 1.22% 31.559us 6.312us 0.000us 0.00% 0.000us 0.000us 5
aten::empty 1.04% 26.898us 1.04% 26.898us 4.483us 0.000us 0.00% 0.000us 0.000us 6
cudaLaunchKernel 1.77% 45.828us 1.77% 45.828us 6.547us 0.000us 0.00% 0.000us 0.000us 7
cudaDeviceGetAttribute 0.04% 1.095us 0.04% 1.095us 1.095us 0.000us 0.00% 0.000us 0.000us 1
cuLaunchKernel 0.19% 5.019us 0.19% 5.019us 5.019us 0.000us 0.00% 0.000us 0.000us 1
-------------------------------------------------------------------------------- ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
Self CPU time total: 2.584ms
Self CUDA time total: 105.440us
-------------------------------------------------------------------------------- ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
Name Self CPU % Self CPU CPU total % CPU total CPU time avg Self CUDA Self CUDA % CUDA total CUDA time avg # of Calls
-------------------------------------------------------------------------------- ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
aten::linear 0.41% 9.071us 90.28% 1.981ms 990.728us 0.000us 0.00% 39.710us 19.855us 2
aten::bmm 1.78% 38.991us 2.27% 49.825us 24.913us 24.256us 27.48% 24.256us 12.128us 2
aten::matmul 0.28% 6.092us 86.67% 1.902ms 1.902ms 0.000us 0.00% 23.678us 23.678us 1
aten::clone 0.55% 12.113us 84.16% 1.847ms 615.672us 0.000us 0.00% 17.534us 5.845us 3
aten::copy_ 1.56% 34.326us 82.46% 1.810ms 603.263us 13.567us 15.37% 17.534us 5.845us 3
aten::mm 2.78% 60.973us 3.16% 69.248us 69.248us 15.744us 17.84% 15.744us 15.744us 1
sm80_xmma_gemm_f32f32_f32f32_f32_tn_n_tilesize128x32x8_stage3_warpsize2x2x1_f... 0.00% 0.000us 0.00% 0.000us 0.000us 15.744us 17.84% 15.744us 15.744us 1
void at::native::elementwise_kernel<128, 2, at::native::gpu_kernel_impl_nocas... 0.00% 0.000us 0.00% 0.000us 0.000us 13.567us 15.37% 13.567us 4.522us 3
sm80_xmma_gemm_f32f32_f32f32_f32_nn_n_tilesize128x32x8_stage3_warpsize2x2x1_f... 0.00% 0.000us 0.00% 0.000us 0.000us 12.320us 13.96% 12.320us 12.320us 1
sm80_xmma_gemm_f32f32_f32f32_f32_tn_n_tilesize64x64x8_stage3_warpsize1x4x1_ff... 0.00% 0.000us 0.00% 0.000us 0.000us 11.936us 13.52% 11.936us 11.936us 1
aten::addmm 1.27% 27.838us 1.56% 34.226us 34.226us 9.760us 11.06% 9.760us 9.760us 1
sm80_xmma_gemm_f32f32_f32f32_f32_tn_n_tilesize32x32x8_stage3_warpsize1x2x1_ff... 0.00% 0.000us 0.00% 0.000us 0.000us 9.760us 11.06% 9.760us 9.760us 1
aten::contiguous 0.10% 2.236us 1.77% 38.856us 19.428us 0.000us 0.00% 9.600us 4.800us 2
aten::softmax 0.08% 1.713us 0.70% 15.266us 15.266us 0.000us 0.00% 8.832us 8.832us 1
aten::_softmax 0.40% 8.678us 0.62% 13.553us 13.553us 8.832us 10.01% 8.832us 8.832us 1
void (anonymous namespace)::softmax_warp_forward<float, float, float, 7, fals... 0.00% 0.000us 0.00% 0.000us 0.000us 8.832us 10.01% 8.832us 8.832us 1
aten::reshape 0.44% 9.757us 83.14% 1.825ms 1.825ms 0.000us 0.00% 7.934us 7.934us 1
aten::mean 0.70% 15.309us 1.00% 21.908us 21.908us 7.712us 8.74% 7.712us 7.712us 1
void at::native::reduce_kernel<128, 4, at::native::ReduceOp<float, at::native... 0.00% 0.000us 0.00% 0.000us 0.000us 7.712us 8.74% 7.712us 7.712us 1
aten::add_ 0.77% 16.992us 1.13% 24.840us 24.840us 6.272us 7.11% 6.272us 6.272us 1
void at::native::elementwise_kernel<128, 2, at::native::gpu_kernel_impl_nocas... 0.00% 0.000us 0.00% 0.000us 0.000us 6.272us 7.11% 6.272us 6.272us 1
Activity Buffer Request 79.27% 1.740ms 79.27% 1.740ms 1.740ms 3.967us 4.49% 3.967us 3.967us 1
aten::mul 0.55% 12.175us 0.82% 17.919us 17.919us 2.112us 2.39% 2.112us 2.112us 1
void at::native::vectorized_elementwise_kernel<4, at::native::AUnaryFunctor<f... 0.00% 0.000us 0.00% 0.000us 0.000us 2.112us 2.39% 2.112us 2.112us 1
aten::transpose 0.89% 19.638us 1.24% 27.229us 2.723us 0.000us 0.00% 0.000us 0.000us 10
aten::as_strided 0.53% 11.738us 0.53% 11.738us 0.734us 0.000us 0.00% 0.000us 0.000us 16
aten::t 0.37% 8.191us 0.51% 11.084us 5.542us 0.000us 0.00% 0.000us 0.000us 2
aten::empty_like 0.20% 4.430us 1.14% 25.112us 8.371us 0.000us 0.00% 0.000us 0.000us 3
aten::empty 0.94% 20.682us 0.94% 20.682us 6.894us 0.000us 0.00% 0.000us 0.000us 3
cudaLaunchKernel 2.74% 60.168us 2.74% 60.168us 8.595us 0.000us 0.00% 0.000us 0.000us 7
aten::_unsafe_view 0.31% 6.742us 0.31% 6.742us 3.371us 0.000us 0.00% 0.000us 0.000us 2
cudaLaunchKernelExC 1.16% 25.497us 1.16% 25.497us 6.374us 0.000us 0.00% 0.000us 0.000us 4
aten::unflatten 0.15% 3.373us 0.30% 6.616us 6.616us 0.000us 0.00% 0.000us 0.000us 1
aten::view 0.58% 12.784us 0.58% 12.784us 1.826us 0.000us 0.00% 0.000us 0.000us 7
aten::unsqueeze 0.18% 4.056us 0.25% 5.503us 5.503us 0.000us 0.00% 0.000us 0.000us 1
aten::squeeze 0.20% 4.315us 0.22% 4.929us 4.929us 0.000us 0.00% 0.000us 0.000us 1
aten::select 0.37% 8.096us 0.44% 9.602us 3.201us 0.000us 0.00% 0.000us 0.000us 3
cudaDeviceSynchronize 0.41% 8.990us 0.41% 8.990us 4.495us 0.000us 0.00% 0.000us 0.000us 2
-------------------------------------------------------------------------------- ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
Self CPU time total: 2.195ms
Self CUDA time total: 88.255us
When we run the benchmarking/profiling cells, focus on the reported latency per iteration: the PyTorch kernels should be orders of magnitude faster. Profiling also surfaces which kernel names dominate runtime, which is invaluable when deciding whether to rely on built-ins or pursue custom CUDA kernels.
Considering the level of kernel optimisations that go into such implementations, we shall use implementations from PyTorch or the transformers library from HuggingFace. These optimisations would include the Muon optimiser, RMSNorm, Mixture-of-Experts, FlashAttention, SwiGLU, RoPE, and so on. We discuss these in the next tutorial.
